Church Line Array Sound System with 1pc 12 inch woofer , 55
Hz-20KHz Frequency
12 Inch Church Line Array Sound System VRX900 Series Line Array Speaker Pro Audio for Church (VX-932)
NOVA introduces the VX series Church Line Array Sound System compact line array system for large and medium sound reinforcement
applications.

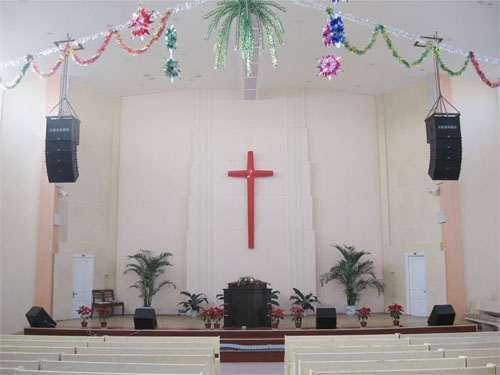

Designed for use in theaters, houses of worship and performing arts
centers, the system provides audio professionals with a
lightweight, high output array that offers exceptional audio
fidelity.
VRX932LA Church Line Array Sound System Key features:
1. 1pc 12” style exclusive neodymium magnet Differential Drive
woofer for high-power capacity and light-weight.
2. 3 pcs 1.4” HF drivers make sound clear and clean.
3. Constant Curvature waveguide for unprecedented array coherence.
4. Integral rigging hardware for simple connection of enclosures
and optional array frame.
5. Dual angle pole socket for aiming flexibility.
6. Array Configuration selector permits “array shading”
VRX932LA Church Line Array Sound System Application:
1. Music playback and sound reinforcement in mid-size venues.
2. Entertainers, corporate A//V professionals and sound system hire
companies.
3. Permanent Installation.
VX932LA Church Line Array Sound System Specification:
System Type: 12" two way, line array loudspeaker system
Frequency response: 55Hz-19.5KHz(-10dB)
70Hz-19KHz(+/-3dB)
Coverage Pattern: 100x15 norminal (Horizontal x Vertical)
Crossover Model: Bi-amp/passive, externally switchable
Crossover Frequency: 1.3KHz
Power Rating ( Continous/Profram/Peak): Passive: 400W/800W/1600W
Bi-amp: LF: 300W/600W/1200W
Bi-amp: HF: 100W/200W/300W
System Maximum SPL: 133dB SPL peak (passive)
LF: 130dB
HF: 137dB
System Sensitivity (1w@1m): 101dB SPL (passive mode)
LF: 99dB
HF: 111dB
LF Driver: 1x350mm (! 2") woofer with neodymium magnet
HF Driver: 3 x 25.4mm (1") voice coil, neodymium magnet compression
driver units
Nominal Impedance: Passive: 8Ohm
Bi-amp LF: 8Ohm
Bi-amp HF: 8Ohm
Enclosure: 18mm. 11 ply plywood
Suspension/Mounting: Suspension requires optional VX line array
frame kit /10 eyebolts
Finish: Black Dural Flex Finish
Grill: Power coated,
VX932 Church Line Array Sound System Spcification:
| Specification Church Line Array Sound System | |
| Model | VX-932LA | VX-918S&VX918SA |
| Frequncy response | 55 Hz - 20 kHz | 55 Hz - 20 kHz |
| Nominal Directivity (-10dB) | 100° H x 15° V | N/A |
| Impedance | 8Ohm | 8Ohm |
| RMS handling capacity | 400W | 400W |
| Peak power | 1600W | 1600W |
| Components(LF) | 1 x 12inch Neodymium driver unit | 1 x 18inch high power woofers |
| Components(HF) | 3 x 1inch Neodymium dynamic diaphramg compression | N/A |
| Sensitivity | 101 dB/W/M | 98 dB/W/M |
| Maximum SPL | 133 dB | 130 dB |
| Material | Birch Plywood | Birch Plywood |
| Front: | polyester powder-coated steel grill | polyester powder-coated steel grill |
| Rigging | integrated flying hardware and handles | integrated flying hardware and handles |
| Size | 350x595x375mm | 508x597x749mm |
| Weight | 22 kg | 38 kg |
| Model optional | Bi-amp/passive, extremslly switchable | Optional powered version |
