CA-20 2 x 1300 W 8 Ohm Class AB 2 channel Professional Power amplifier (CA-20)

Features:

1) Frequency response: 20Hz-20kHz

2) 2-channel bridgeable

3) 110/220 volt switchable

4) Double cooling fan

5) Overload and protection indicator

6) Frequency response of 20Hz-20kHz

7) 2-channel bridgeable

Description:

Low harmonic distortion: (THD=0.1%),

Frequency response performance(20-20kHz).

New optimized of mechanical power switch, could use power manager.

Adopted SMT, AI, ICT fully automated production and testing technology, ensure a standardized production and product consistency.

With protection of over-voltage, over-current, short circuit, over-temperature, DC, VHF and so on, to prevent human and environmental factors damage the product;

Application:

Night club, Disco, Entertainment place, installation project, church, live sound.

Meeting room, KTV, slow club, bar, PA system...

Other models of CA series amplifier:

1. CA12 AB class power amplifier (2x800W@8Ohm)

2. CA18 AB class power amplifier (2x1000W@8Ohm)

3. CA20 AB class power amplifier (2x1300W@8Ohm)

Specification:

Power

8Ω stereo power: 1300W

4Ω stereo power: 2000W

2Ω stereo power: 2600W

8Ω bridge power: 4000W

4Ω bridge power: 5000W

Other SPECS.

Frequency Response: 20Hz-20kHz

THD: <0.1%

SN Ratio: >80dB

Damping: >300

Resolution: >50dB

Slew Rate: >20V/μs

Input Sensitivity: 0.775V/1V/1.4V

Input Impedance: 10kΩ (imbalance)/20kΩ (balance)

Gain(8Ω): 42.5dB

Amplifier Topology category: 3-tier Class H

Fan: Blow from the panel and blow backwards

Protect: Soft start, DC, short circuit, overload, distortion limit, overheating, the volume getting bigger.

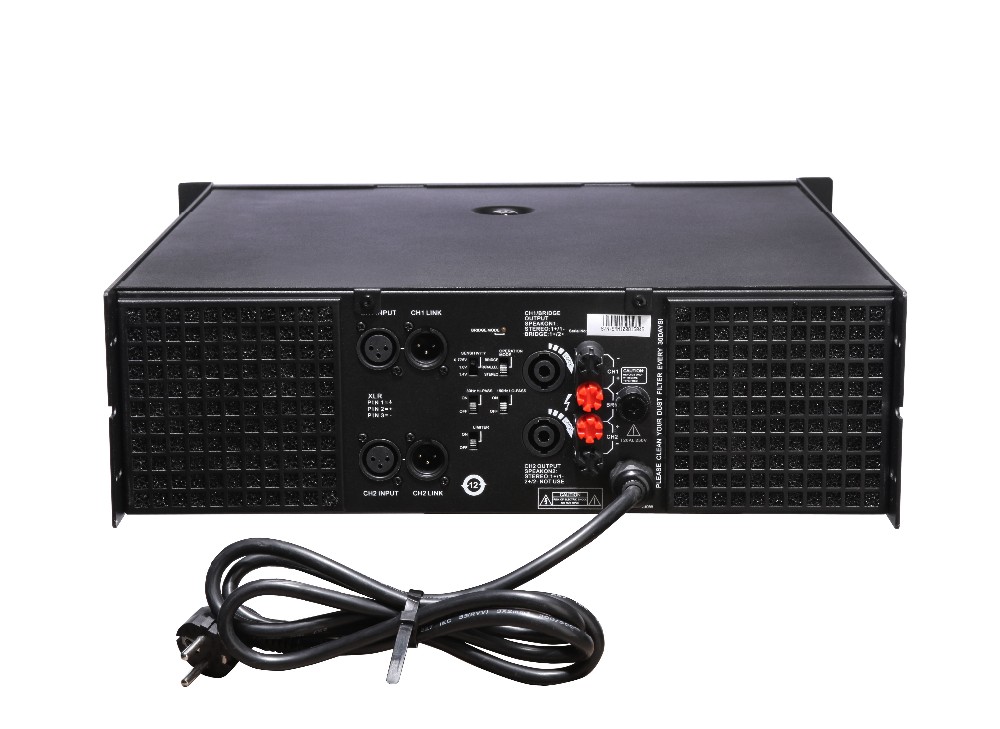

Connector Input: Balance input XLR female socket,

Balance and connect the XLR male outlet

output: Two red and black terminal, NL4 speakon plug.

Function

Indicators/Channel Indicators: standby, power, signal, clipping, protection, parallel connection, bridge

Front Panel Function: power switch, volume control knob

Fear Panel Function: stereo, parallel, bridge select switch, input sensitivity selector switch
