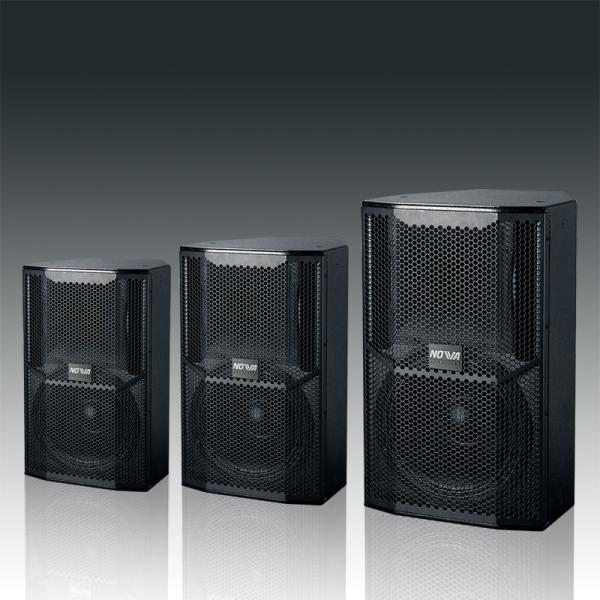

NOVA KM-12 12” 2-way Nightclub Speaker System Black color Full
Range Speaker (KM-12)
Quick details:
12"+1.75", RMS power is 400W
KM-12 loudspeaker made with 18mm thick plywood.
It is full frequency sound box with beautiful cabinet design,
flexible hanging system,
Features:
Fuller sound for larger rooms
15” 190Oz woofer
1.75-inch titanium HF compression driver
90° x 70° coverage-pattern waveguide
129 dB max SPL
Power handling: 800 W continuous, 1600 W peak
Braced 18mm plywood enclosure
High-efficiency and high quality speaker units
High penetrating power in mid-high frequency
Powerful and elastic bass
Compact box, saving space
Multiple professional hanging system
Wear-resistant in Germany water paint protection
KM-12 Specification:
Model: KM-12
System: 2-way loudspeaker system
Frequency response (±3dB):55Hz~20 KHz
System sensitivity (1w@1m): 100dB/M/W
Nominal Impedance: 8ohms
Power handling: 350W
Maximum SPL: 129dB
Peak power: 1150W
Nominal Coverage angle (H x V): 90°x 70°
Dimensions (W x D x H):600x365x370mm/PCS
Connectors: 2xSpeakon| connectors (NL 4)
Enclosure material: 18mm Plywood
Finish: Textured black paint
Grille: Black perforated steel
Suspension system:8mm Screw or fly track
Net weight: 22Kg
Carton size: 690x480x450mm/PCS
Descriptions:
· KM series is a special two-way full-frequency speaker series ,
extremely powerful in the LF, comfortable and soft in mid-high
range.·
· Ultra high sound pressure level and wide dynamic range.
· The cabinet is constructed with high-class birch plywood,
together with the unique perforated high-strength grill.
· Elegant appearance, light weight, and high power output.
· The trapezoidal structure design, greatly reduce the resonance of
the wave in the cabinet.
Applications:
· Business clubs/ Nightclubs and Bars/High-class KTV rooms
· High-class hotels/ Theaters and Multi-functional halls·
· Permanent Installation
KM-12 Specification:
| Model Number | KM12 |
| Type | 12” 2-way full range speaker |
| Frequency response | 55Hz-20KHz |
| Sensitivity | 100dB/M/W |
| Norminal impedance | 8Ohm |
| Program power | 700W |
| Peak power | 1400W |
| Max SPL | 129dB |
| Coverage angle | 90°H x 70°V |
| Components | 12" + 1.75" |
| Enclosure | 18mm birch plywood |
| Dimension | 600x365x370mm |
| Packing dimension | 690x480x450mm |
| Net weight | 22Kg |
| Gross weight | 25Kg |
Specification:
| Model Number | KM10 | KM12 | KM15 |
| Type | 10” 2-way full range speaker | 12” 2-way full range speaker | 15” 2-way full range speaker |
| Frequency response | 60Hz-20KHz | 55Hz-20KHz | 45Hz-20KHz |
| Sensitivity | 99dB/M/W | 100dB/M/W | 103dB/M/W |
| Norminal impedance | 8Ohm | 8Ohm | 8Ohm |
| Program power | 600W | 700W | 1000W |
| Peak power | 1200W | 1400W | 2000W |
| Max SPL | 128dB | 129dB | 134dB |
| Coverage angle | 90°H x 70°V | 90°H x 70°V | 90°H x 70°V |
| Components | 10" + 1.75" | 12" + 1.75" | 15" + 3" |
| Enclosure | 18mm Plywood | 18mm birch plywood | 18mm birch plywood |
| Dimension | 520x307x320mm | 600x365x370mm | 690x440x455mm |
| Packing dimension | 600x400x420mm | 690x480x450mm | 770x530x510mm |
| Net weight | 16Kg | 22Kg | 33Kg |
| Gross weight | 19Kg | 25Kg | 37Kg |
