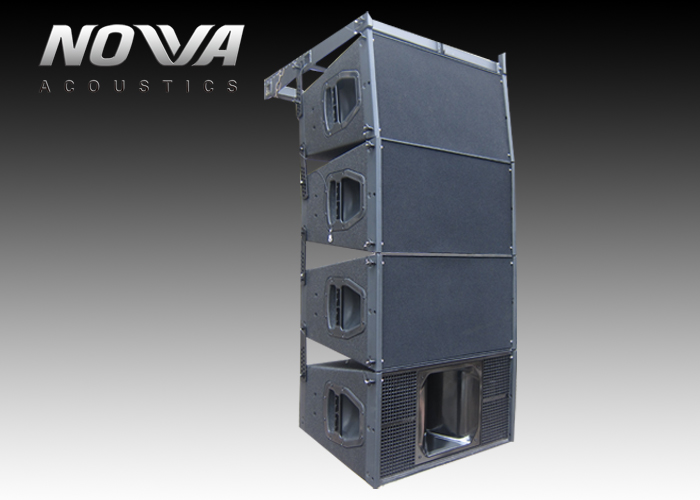

700W Q1 Professional Speaker System , 10 Inch Powered Line Array
Speakers For Living Event
2x10"+1.75" 700W Line Array Sound System For Living Event , DJ and
Church (Q1)
Description:
Q1 is a professional line array speaker with one components design
especially for outdoorand indoor live show performance. LF is 2pcs
10inch woofer, HF is 2inch custom-made compression driver unit. Q1
use 3 independent cabinet design, components specification
calculation with exact attention, letting each driver work under
different frequency cabinet with physical resonance Principle. Q1
power is strong, sensitivity is high, connectiong
is convenient, using is flexible, with all these characteristics.
Cabinet is made by the multilayer birch plywood material, outside
finish/paiting is painted with high quality wear resisting clip
figure coating.
700W Q1 Professional Speaker System Features:
Q1 is a two-way passive line array speaker, consists of dual 10"
neodymium woofers and one piece of 2" compression tweeter fitted to
a toroidal wave shaping horn.
* The perfect dispersion pattern allows the Q1 to construct
vertical columns which produce a curved coherent wave front.
* Vertical configurations can be starting from two cabinets to
twenty cabinets for different users or applications.
* The enclosure is constructed by high-strength plywood,
incorporates a pair of metal handles.
* A rigid metal grille with acoustically transparent form inside is
constructed in the front, to protect the cabinet.
* The combination of Q1 and Q2(sub) makes the sound quality the
best, clear and transparent in high frequency, mellow and elastic
in middle and low frequency.
* Mostly applied in indoor and outdoor live shows, conference hall,
small auditorium
700W Q1 Professional Speaker System Application:
This line array crossover with extra processor/crossover, wide
application space.
1. Commercial performance;
2. Auditorium hall;
3. Church hall;
4. Small size theatre.
700W Q1 Professional Speaker System Specification:
| Specification |
| Model | Q1 line array speake system | QSUB |
| System | 2-Way line array system | subwoofer |
| Frequency response (dB standard): | 60Hz-17KHz (±3dB) | 40Hz-130Hz |
| Frequency response (dB CUT mode): | 100Hz-17KHz (±3dB) | 40Hz-100Hz |
| Components: | LF: 2x10” Neo woofer units | 18” sub-woofer unit |
| | HF driver: 1X1.5” Neo compression driver | |
| Normal Impedance: | 8Ohm | 8Ohm |
| RMS power: | 750W | 500W |
| Peak power: | 1500W | 2000W |
| System sensitivity: | 135dB/M/W | 129dB/M/W |
| Max sensitivity: | 139dB | 133dB |
| Horizontal (-6dB): | 75° | N/A |
| Vertical (-6dB): | 15° | N/A |
| Dimension (WxDxH): | 580x306.5x425mm | 493x580x668mm |
| Enclosure material: | 18mm plywood | 18mm plywood |
| Grill: | Black perforated steel | Black perforated steel |
| Suspension system: | proprietary rigging system | proprietary rigging system |
| Net weight: | 29kg | 49kg |
