12 Inch Line Array Professional Audio Outdoor Sound System For
Outdoor Event Portable 140dB For Living Event
Dual 12 Inch Professional Audio Line Array Speaker Outdoor Sound
System (CA-2712)
Quick Details:
12"x2+7"x2+2"x2 3 Way Line Array, 1200Watt RMS power
Place of Origin : Guangzhou , China
Brand name : NOVA acoustics
Model Number: CA2712
Service Type: OEM or ODM
Warranty : one year
Description:

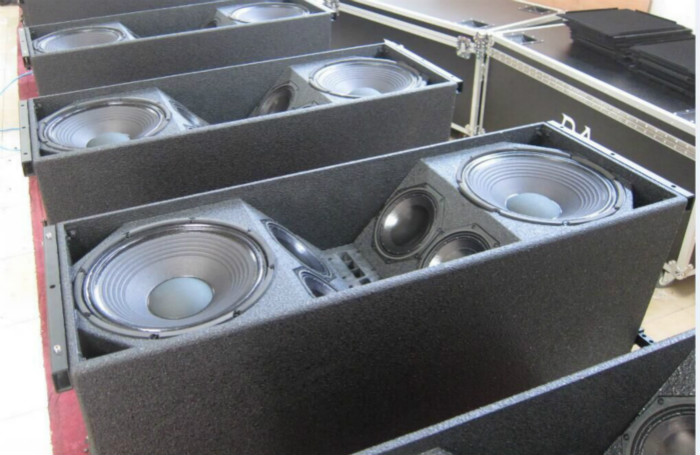

The CA2712 line array system which is made of two 12'' USA paper
cone customs-made woofers, two high sensitivity 7'' USA paper cone
mid range speaker units, two 2'' titanium Customs-made compression
drivers, the drivers by two independent plane wave converter, with
a innovative directly horn which generate parallel wave in the
front.
CA2712 speaker box is trapezoid shaped, hi, mid, low driver units
all with independent horn output, which improved the speaker sound,
maximum lowed the intervention between the drivers. The precise
positioning position between the driver units which verified the
speaker box very small, but also to ensure the gap between the
cabinet to cabinet minimize. Even several boxes combination can
also with a precise point forming a line array group, resulting in
excellent sound quality, each box is installed with hanging
assembly, can be convenient for hanging, assembling, which
application CA2712 line array performance excellent to large
stadiums,performance arts centers and music halls, big outdoor concerts, commercial events, etc.
Features:
· Trapezoidal box design with the seamless gap between two
cabinets.
· Extremely high sound pressure levels and long distance.
· Passive three-way line array system, with refined and improved
technical.
· Easy to control the coverage.
· Super-wide dynamic range and high-resolution.
· Capable of forming a continuous, equiphase linear sound source.
· High-protection water paint to make sure the durability of the
cabinet to prevent it from scratch or hit.
· With high-strength metal grill with high-transmission acoustic
foam to keep it away from dust and rain.
Applications:
· Large and medium theaters/Auditoriums and outdoor stadiums,
· Large and medium performance arts centers and music halls
· Large and medium touring sound system and performance artscenters and conference center
Specifications:
| Model | CA2712 |
| Components | 2x12”; MF:2x7”; HF:2x2” (Neodymium Magnets Components is available) |
| Frequency Response | 60Hz - 18kHz(±3dB) |
| Sensitivity(1W/1M) | HF:109dB MF:106dB LF:103dB |
| Maximum Peak SPL | 140dB |
| Rated Power(RMS) | HF:200W MF:240W LF:800W |
| Peak Power(RMS) | HF:400W MF:480W LF:1600W |
| Impedance(Ohm) | HF:16 Ohm; MF:16 Ohm; LF:4 Ohm |
| Crossover | / |
| Dispersion Angle (-6dB) | 90H x 0-10V (-10 dB) |
| Connectors | 2xNL8 Speakon |
| Enclosure Material | High-strength Plywood |
| Cabinet Finish | Germany Water Paint |
| Dimensions (W*D*H) | 370 * 610* 1175mm |
| Net. W. | 75 kg |
